 D2 Axle Build

Go down
+2
Hilltoppersx
jakeb44
6 posters
Go to page : 1, 2  Next
AuthorMessage
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: D2 Axle Build   D2 Axle Build I_icon_minitimeThu Jan 29, 2015 7:17 pm

With a 5 speed, stock gears are less than ideal both on and off road. I wanted the deepest gears possible, but still have a reasonable cruising speed. After doing a little research, I went with Ashcroft 4.75 gears.
They'll give me a 52:1 (compared to 39:1 stock) first gear and will cruise at 70MPH at 3,000 RPM.

3.54 gears and 33s
D2 Axle Build Stock_10

4.75 gears and 33s
D2 Axle Build 4_75_g10

Parts truck the axles are coming from-
D2 Axle Build Partst11


Ashcroft packaged shipped to my house in 3 days-
D2 Axle Build Ring_a10
D2 Axle Build Seals_10

I'm still waiting on an Atlantic British order with ARBs.
Back to top Go down
Hilltoppersx
Admin
Hilltoppersx


Posts : 3183
Join date : 2010-09-28
Location : Westchester, NY

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeFri Jan 30, 2015 2:13 pm

wow that is awesome. i was doing 60 yesterday in my D1 and i had to stop short and i thought the lady in front of me was done for. can't imagine if i was doing 70 i would have stopped in time. lol.
Back to top Go down
https://nelrc.iftopic.com
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeFri Jan 30, 2015 5:34 pm

Hilltoppersx wrote:
wow that is awesome. i was doing 60 yesterday in my D1 and i had to stop short and i thought the lady in front of me was done for. can't imagine if i was doing 70 i would have stopped in time. lol.


Between the braking, the noise, the vibrations and the fuel mileage, I don't go above 70 anyway haha.
Back to top Go down
Hilltoppersx
Admin
Hilltoppersx


Posts : 3183
Join date : 2010-09-28
Location : Westchester, NY

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeFri Jan 30, 2015 5:52 pm

true story.. i got my vibrations down but the wind noise of trying to push a truck shaped like a brick through the air at 70mph is crazy, especially i have a few window seals that are shot so it starts whistling from all different angles .
Back to top Go down
https://nelrc.iftopic.com
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeThu Feb 05, 2015 11:45 pm

More parts, it's like Christmas!

ARB Twin Motor Compressor- 150PSI -
D2 Axle Build Dsc_0011

ARB Air Line Kit for on board air- 20' hose-
D2 Axle Build Dsc_0012

RD128 Locker-
D2 Axle Build Dsc_0013

Other Misc. Parts-
D2 Axle Build Dsc_0015


Now waiting on the axles and a time to build the them.
Back to top Go down
Hilltoppersx
Admin
Hilltoppersx


Posts : 3183
Join date : 2010-09-28
Location : Westchester, NY

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeFri Feb 06, 2015 12:48 pm

Shuler who has been MIA for a few months on here has the ARB air locker setup. it seems like a nightmare to me. when it works i'm sure its wonderful but i have enough headaches with these trucks! Hope to see you have them built and ready for the summer events
Back to top Go down
https://nelrc.iftopic.com
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeFri Feb 06, 2015 5:53 pm

Hilltoppersx wrote:
Shuler who has been MIA for a few months on here has the ARB air locker setup. it seems like a nightmare to me. when it works i'm sure its wonderful but i have enough headaches with these trucks! Hope to see you have them built and ready for the summer events




IMO they're the best (having the ability to switch on and off, and having 100% traction compared to LSD), and most reliable (compared to E-Locker) locker on the market. We had them in our old D1 and never had a problem. Time will tell!


Manifold kit necessary for the twin compressor showed up-
D2 Axle Build Dsc_0016
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Feb 09, 2015 7:02 pm

The original plan was to put the compressor under the hood in the empty space on the passenger side firewall. It turned out to be way to big to put there, so it ended up under the passenger seat. The compressor and manifold fit perfectly with good access to the air pump.
Hopefully it'll be wired up this weekend.

D2 Axle Build Img_5114

D2 Axle Build Img_5111

D2 Axle Build Img_5112
Back to top Go down
devildog01
Industrial Strength Dickhead
devildog01


Posts : 617
Join date : 2010-11-29
Location : Your moms bed

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Feb 09, 2015 9:40 pm

Yea thats great but how are you going to listen to your one direction cd's?
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Feb 09, 2015 11:21 pm

devildog01 wrote:
Yea thats great but how are you going to listen to your one direction  cd's?

I thought you used to own this truck? It never had a CD player.
Back to top Go down
devildog01
Industrial Strength Dickhead
devildog01


Posts : 617
Join date : 2010-11-29
Location : Your moms bed

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeTue Feb 10, 2015 10:58 pm

It has a cd player. You just have to find it.
Back to top Go down
Thebloody323
NELRC Original Gangsta
Thebloody323


Posts : 646
Join date : 2012-03-02
Age : 42
Location : Ewing, NJ

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Feb 11, 2015 3:31 pm

It's a trap! You don't want to find what he's hidden in that thing.
Back to top Go down
TOM R
NELRC Pack Leader
NELRC Pack Leader
TOM R


Posts : 543
Join date : 2013-05-19
Location : south N.J. / ne VA.

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Feb 11, 2015 3:56 pm

Is that really a good place, if you follow ed around enough that areas bound to be under water eventually , just thinking out
Loud
Back to top Go down
Hilltoppersx
Admin
Hilltoppersx


Posts : 3183
Join date : 2010-09-28
Location : Westchester, NY

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Feb 11, 2015 8:36 pm

^ jokes from the guy whos profile pic is him sunk in the pines. LOL
Back to top Go down
https://nelrc.iftopic.com
TOM R
NELRC Pack Leader
NELRC Pack Leader
TOM R


Posts : 543
Join date : 2013-05-19
Location : south N.J. / ne VA.

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Feb 11, 2015 8:56 pm

Like I said not a great location for mounting electrical stuff
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Feb 11, 2015 9:18 pm

Thebloody323 wrote:
It's a trap! You don't want to find what he's hidden in that thing.




I decontaminated every inch!




TOM R wrote:
Is that really  a good place, if you follow ed around enough that areas bound to be under water  eventually , just thinking out
Loud



I was planning on putting it under the hood, but there just wasn't enough room for it. Plus, there would have been a lot of heat from the headers. Under the seat is a clean, dry spot that has cool, clean air. I had the same thoughts you did, (not about Ed though), and if I ever get stuck in that deep of water, the whole truck is going to be toast. Moral of the story, let someone else try unknown puddles. The compressor is made to run underwater (waterproof electricals and a 'snorkel' kit for the intake) so a little bit water isn't much concern.
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeSun Feb 15, 2015 11:25 pm

This ended up taking a lot longer then I thought it would, but I wanted do it correctly the first time.

I ran the harness through the factory hole on the passenger side firewall, and there was still enough wiring to run it along the transmission tunnel and have it come out at the compressor.
D2 Axle Build Dsc_0018
D2 Axle Build Dsc_0017

Used some thread sealant and sealed all of the fittings on the compressor and manifold.
D2 Axle Build Dsc_0019

Put it all back in and plugged it in and it works perfectly with no leaks.
D2 Axle Build Dsc_0020
D2 Axle Build Dsc_0021

It took me 50 seconds to air up my 33" tire from 15lbs to 30lbs. 4 minutes to air up all the tires from trail to street pressure isn't bad, and it's a lot quieter then I was expecting. Overall, I'm impressed with the compressor and the rest of the ARB parts.
Back to top Go down
TOM R
NELRC Pack Leader
NELRC Pack Leader
TOM R


Posts : 543
Join date : 2013-05-19
Location : south N.J. / ne VA.

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Feb 16, 2015 10:52 am

Wow that's some cfm to fill that fast, no reservoir just straight compressor?
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Feb 16, 2015 11:47 am

TOM R wrote:
Wow that's some cfm to fill that fast, no reservoir just straight compressor?

It regulates the air between 135PSI and 150PSI and has a flow rate of 6.16 CFM. I don't have a tank right now, but if I wanted to run power tools I'd need one.
Back to top Go down
dcarr1971
Custom CDL Installer
dcarr1971


Posts : 361
Join date : 2011-10-20
Age : 52
Location : Pittsburgh, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Mar 11, 2015 1:03 pm

Guess I've forgotten to check in over here for a while.

Are you planning to go to bigger tires? I'm running the Ashcroft ATB diffs with their 4.12 hd gears and 255/85 (33") tires. They've made a huge difference in performance and all around drivability.

I'd be concerned that these 4.75 may actually be too low for such small tires though. Have you run this ratio with 33" tires before? I know guys on 35's who run 4.56s, but hadn't heard anyone was up to 4.75 on a tire this small.

Either way, I'll be interested to hear how the 4.75 gears work out for you...
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeWed Mar 11, 2015 8:47 pm

dcarr1971 wrote:
Guess I've forgotten to check in over here for a while.

Are you planning to go to bigger tires?  I'm running the Ashcroft ATB diffs with their 4.12 hd gears and 255/85 (33") tires. They've made a huge difference in performance and all around drivability.

I'd be concerned that these 4.75 may actually be too low for such small tires though.  Have you run this ratio with 33" tires before? I know guys on 35's who run 4.56s, but hadn't heard anyone was up to 4.75 on a tire this small.

Either way, I'll be interested to hear how the 4.75 gears work out for you...


I agree with you on all of that. The biggest difference is having a 5 speed. My dad had a 5 speed D1 on 32s with 4.14 GBR gears and it was was a well rounded truck, but could've used deeper gears in the rocks. For the amount of highway driving I do, (only to events), I figured I'd give up the cruising speed (for now) to benefit in the rocks.

I'm taking the tcase out of my parts truck partly because I don't trust the one I have now, but also to build it with Ashcroft 1.003 high range gears. With 4.75 gears and 33s, it'll get me pretty close to the same speed/RPMs as 4.12 gears.

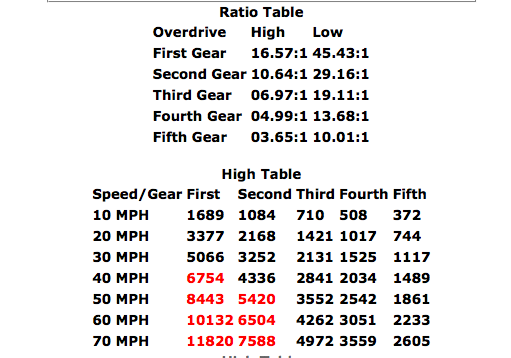

4.12 gears with stock 1.222 tcase gears and 33s- 70MPH at 2,600RPM
D2 Axle Build Screen10

4.75 gears, 1.003 tcase gears, and 33s- 70MPH at 2,500RPM
D2 Axle Build Screen11

And if I win the lottery, 4.75 gears, 1.003 high range gears, 5:1 low range gears and an underdrive...
D2 Axle Build Screen12

I haven't driven, ridden in, or know anyone (personally) with 4.75 gears, but I have a Toyota with dual tcases which has a final drive of 223:1, and ridden in a 300TDi/R380 Range Rover Classic with an Ashcroft Underdrive. I love gears.

As for tire size, I'm not sure. I always think about going bigger, but there's not much reason.

I'm also interested to see how it turns out. The plan is to strip the parts truck this weekend and hopefully build the third members the 21st/22nd.
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeSat Mar 14, 2015 10:30 pm

Picked up the parts truck and started taking it apart-
D2 Axle Build Dsc_0022

D2 Axle Build Dsc_0023

D2 Axle Build Dsc_0024
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeSun Mar 15, 2015 8:08 pm

Not much to say... Hoping to have the third members built next weekend.
D2 Axle Build Img_5910
D2 Axle Build Img_5911
D2 Axle Build Img_5913
D2 Axle Build Img_5914
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeMon Mar 16, 2015 7:53 pm

Rear axle is stripped-
D2 Axle Build Dsc_0010
Back to top Go down
jakeb44
Guy Who Knows Shit
jakeb44


Posts : 79
Join date : 2014-07-22
Location : West Chester, PA

D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitimeSun Mar 29, 2015 9:35 pm

Made a little bit of progress. Third members are built and the axles are painted.
D2 Axle Build Img_6010
D2 Axle Build Img_6210
D2 Axle Build Dsc_0011
Back to top Go down
Sponsored content





D2 Axle Build Empty
PostSubject: Re: D2 Axle Build   D2 Axle Build I_icon_minitime

Back to top Go down

D2 Axle Build
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» my build so far
» Tray back Disco build

Permissions in this forum:You cannot reply to topics in this forum
 :: Truck Talk-
Jump to:
